100A Non HF Air Plasma Cutter

1. Plasma arc is established without high frequency, which is best suitable for CNC/Robotic applications for the best cutting.
2. Higher cutting speed: Compared to the conventional type, the dual-tip design can increase the cutting speed.
3. Less consumables: While cutting thick plates, the inner tip is well protected, and its usage life is also greatly increased.
4. Safer operation; There is no potential for assistant tips during the cutting process, which makes the operation safer.
5. The machine is operated with 40% of power saving and less noise.
6. The output current is set and displayed in numerical format.
7. The machine works in 100% of the duty cycle, and it is compatible with the CNC system and other automatic equipment.
8. This machine is protected from troubles due to gas pressure, temperature of the machine, input voltage, overcurrent, and ignition failure.
9. 100% compressed air is flowing through both the inner and outer tips, which results in the best cooling effect and the extended usage life of the torch.
10. The machine has lower signal interference.
11. Bevel cut capacity is up to 45°.

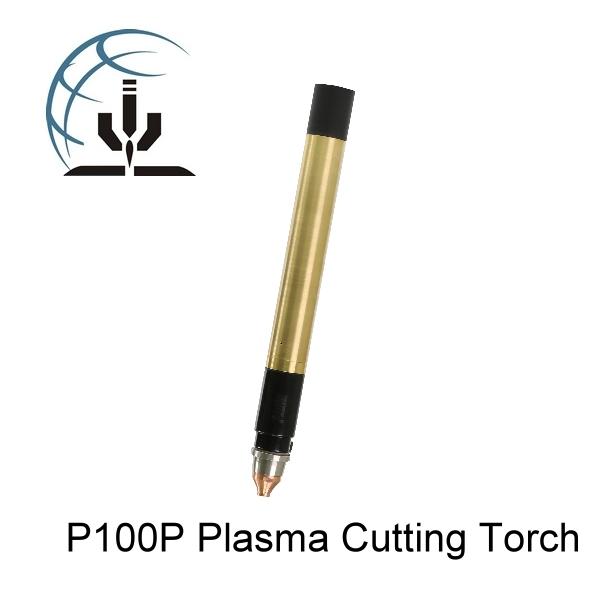

12. No breakable ceramic parts, spare parts of P100M supply longer life/better cutting quality.
13. Longer handle is optional, the max length is 400mm.

These are our main advanced production processes to make the high-quality products for you.
Our products are all made in Taiwan from the beginning to the very end.

All the products have been tested and/or quality checked before delivery.
We are 100% confident about our product when it is delivered to the customer.

Remark:

1. Customized specifications can be made upon request.
2. Our products are manufactured according to the latest technology.
   We reserve all the rights for product improvement.
3. Photo(s) are for reference only.
