200A High Speed Plasma Cutter

1. AP-201X+ Series Plasma cutting machine provides multiple Plasma cutting functions to fit various metal cutting requirements, including the following features,
   * Oxygen Plasma Cutting: the high cutting speed and good cutting quality without nitrogenization problem in mild steel.
   * Compressed-air cutting provides high cutting speed and gas-free charge cutting.
   * N2 Plasma cutting: supply a low-cost and non-oxygenized plasma cutting for stainless steel.
   * H35+N2 Plasma Cutting: achieve a perfect cutting surface on Stainless Steel.

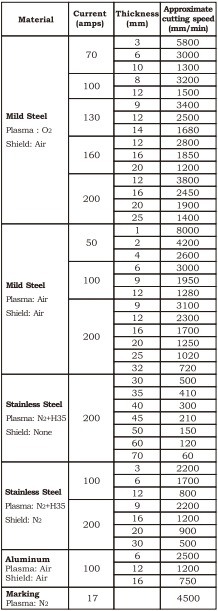

2. Higher cutting speed, which overtakes traditional cutting methods and laser cutting. 200Amp cutting speed on 20mm mild steel 1900 mm/min without preheat.  Moreover, Plasma cutting is able to pierce directly.


3. Dual tip and single tip modes are available for selection:
   * Dual tip: provides much higher cutting speed, better capacity, and also assists can protecting spatter from a workpiece to extend the inner tip’s life.
   * Single tip: fewer consumables, reduces the cutting cost.

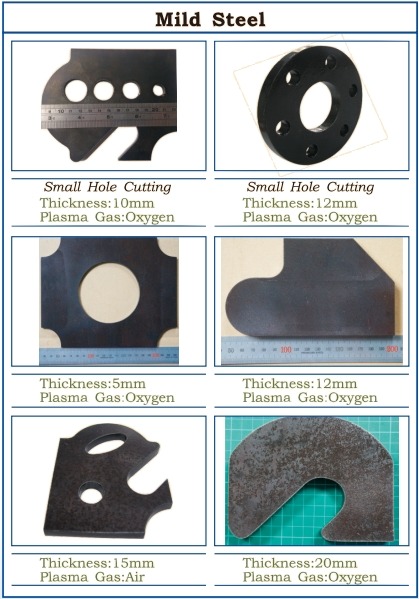

4. Small hole cutting supply tapping application and increase fixed strength for steel structure and fabrication.
5. Comes with a standard CNC interface, it’s easy to connect to CNC/AVC or a Robot to perform auto-cut.
6. Lower cutting cost:
   * Oxygen long-life designed consumables, which reduces much running cost of spare parts.
   * The number of consumables has been reduced; it can only apply the electrode and tip in the single-tip model.


7. Powerful cutting capability:
   *Cutting capability is up to 70mm in mild steel and stainless steel (edge start)


8. Bevel cutting is available, cutting angle is up to 45°
9. Step adjusted current setting, the operator only needs to set up the parameter according to the cutting parameter to obtain a good cutting quality.
10. Punch and Plasma marking functions are available.

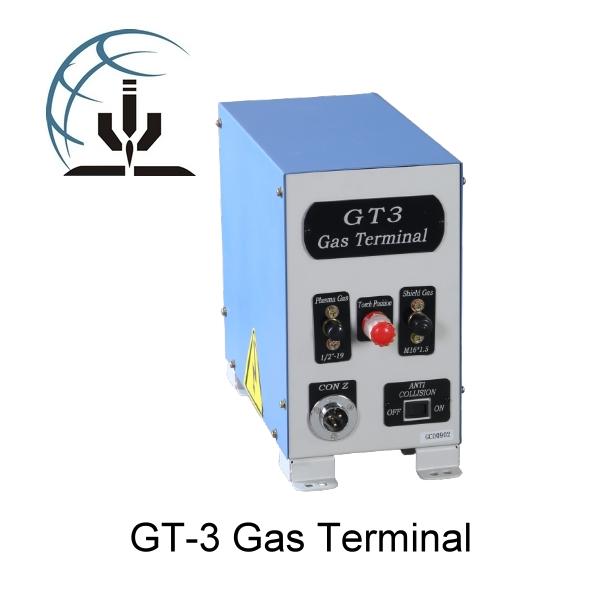

Full function of a 200 amp Plasma cutting Machine.   Simply press a button on the gas console, and the system will automatically select the suitable gases for Mild steel/ Stainless steel.  No gas modification is required when every time change the cutting material.

Suitable for fixed cutting material.  Max cable length from power supply to HF console is 60 Meters, which is suitable for most CNC sizes.

Convenient structure: The HF ignition unit is integrated into the Power Supply.  Suitable for fixed cutting material and smaller CNC machines.

Remark:

1. Customized specifications can be made upon request.
2.  Our products are manufactured according to the latest technology.
3. We reserve all the rights for product improvement. Photo(s) are for reference only.
