500A DC Plasma Welding Machine

Outstanding weld penetration capability. No grooving is needed for 10mm SS plate butt welding. When it is equipped with an automation, it becomes a powerful automatic welding system.

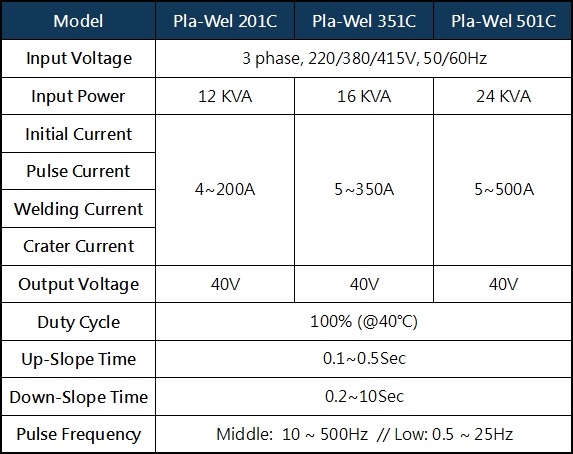

Model
Pla-Wel 201C, 351, 501C
Features

  1. IGBT power module used, save more power than conventions machines
  2. Use of touch panel makes it easy to operate
  3. 60 sets of electric operation parameter can be saved in the machine. Operator can load the previously parameter for the same tasks.
  4. Plasma arc is highly concentrated, Key-hole welding for the thickness up to 10mm without beveling. This function will greatly save the time and material waste.
  5. Independent pilot arc power which is able to continue working.
  6. Stable Plasma arc allows standoff variation.
  7. Pulse function available to attain good welding quality at thin plate.
  8. Gas flow adjustment is available; operator can set the desired gas flow rate on the front panel. (Separate gas console model is available for optional.)
  9. Initial current, welding current, crater fill current and pulse current could be adjusted separately to get the best welding quality.
  10. Digital controlled, parameter can be predetermined before practical operation.
  11. Power supply unit with servo wire feeder model is available for optional.

Welding Sample

Remark:

  1.  Customized specification can be made upon request.
  2.  Our products are manufactured according to the latest technology.  We reserve all the right for products improvement.
  3.  Photo(s) are for reference only.

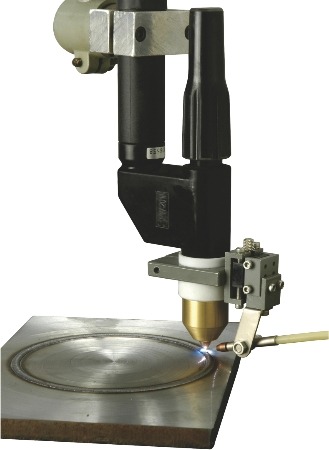

Automation

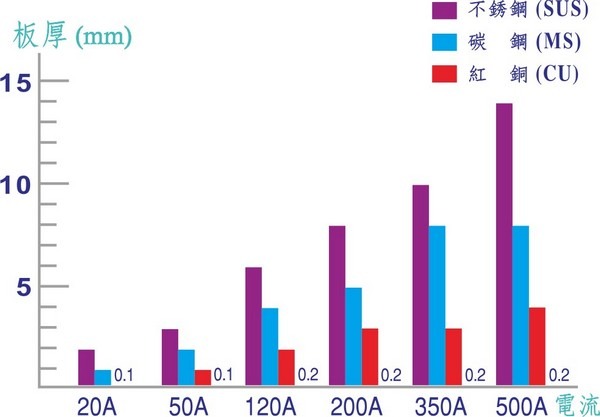

Welding Capability
VS TIG
