120A Air Plasma Cutting Machine

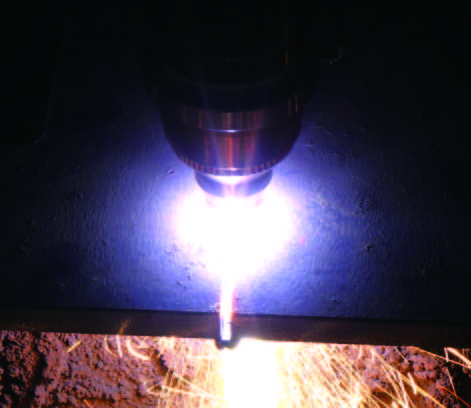

1. Much Higher Productivity: 3~5 times higher cutting speed, no pre-heat is required to cut conductive material. Piercing can be done in 1 second. (Piercing capacity depends on the plasma power supply unit.)
2. Wider Material Flexibility: Plasma can cut most all the conductive material.

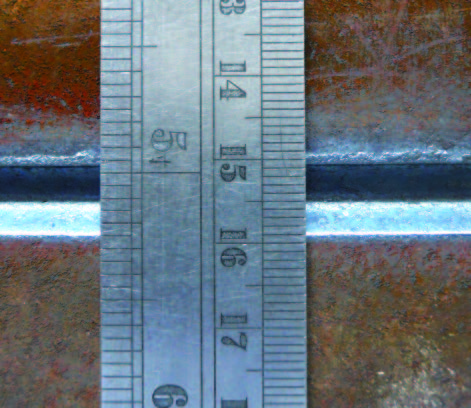

3. Better Cutting Quality: reduce or even eliminate secondary process (Grinding) after plasma cutting.
4. Safe Environment: Only apply compressed air for plasma cutting. No dangerous gas is involved.

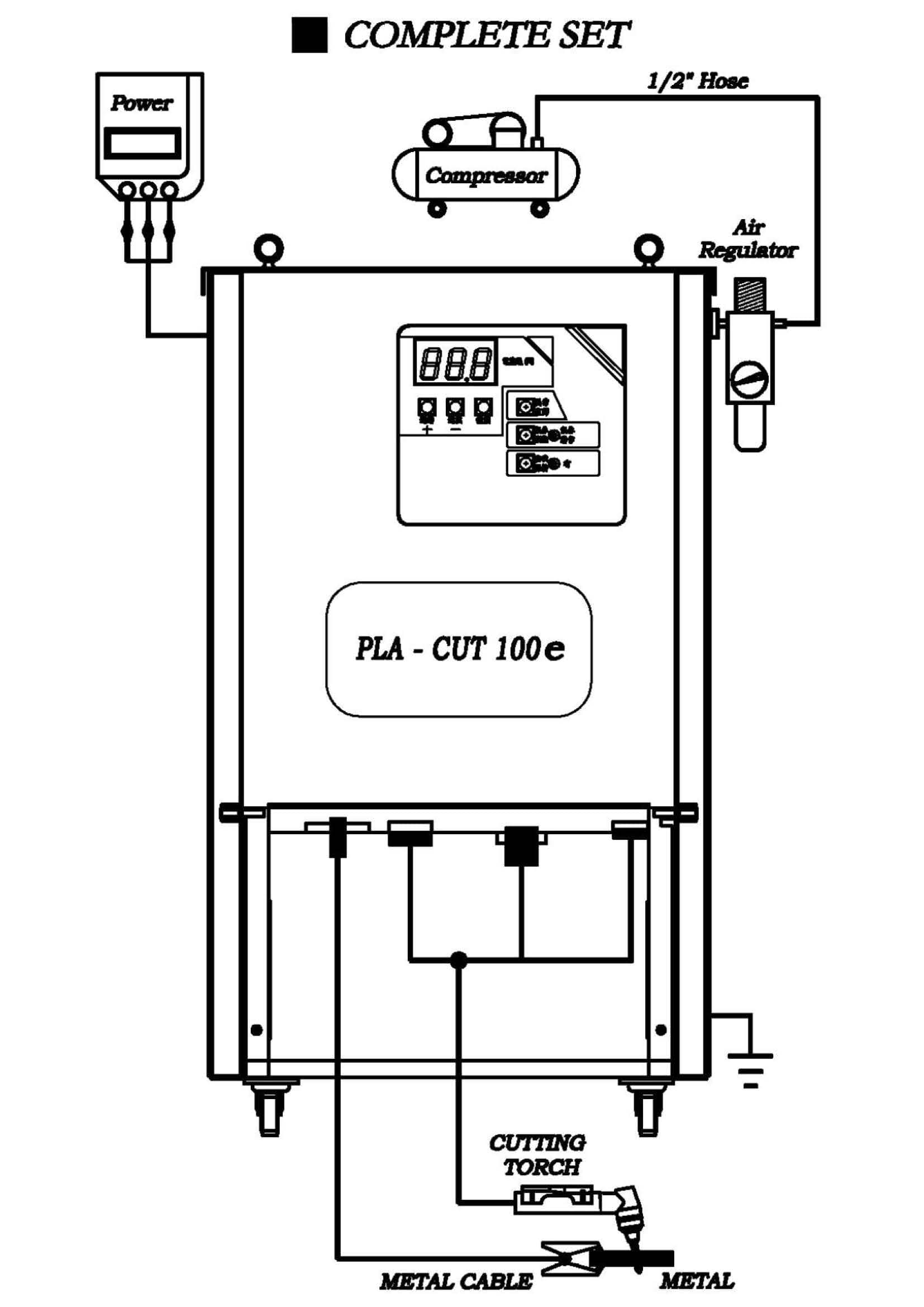

5. Easy operation: Connect to power, gas supply and consumables everyone can achieve good cutting quality, no special expert is required.

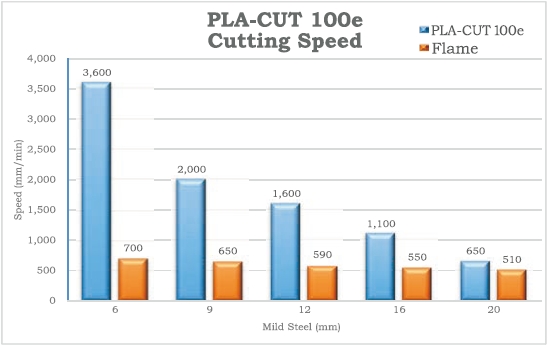

1. Faster cutting Speed: 9mm Mild Steel quality cut achieves 2,000 mm/min at 100A cutting current.
2. 100 % Duty Cycle (1Hr @40℃): CNC machine interface is available as standard. Support CNC or other automated equipment for continuous operation.
3. Digital Readout: current setting, display & error code easily visible in dark workshops environment.
4. Complete Protection: over temperature, low gas pressure, input voltage, over current, ignition failure. Highly reliable design.
5. Safer Operation: There is no potential to assistant tip during the cutting process which makes a safer operation.
6. Best Cooling Effect: 100% of compressed air is flowing through both inner and outer tips, which extends usage life of the torch.

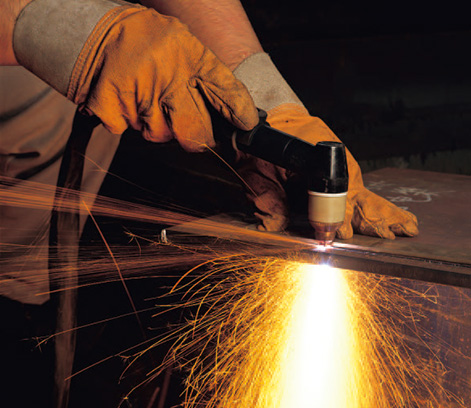

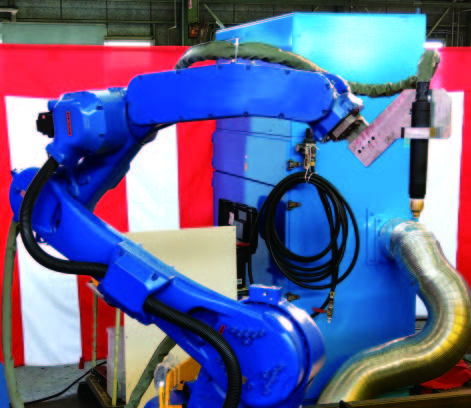

7. Flexible Power Source: Just change the torch & its consumables. You can switch between manual, robotic, gouging & CNC cutting application.
8. Gouging Capability: Good for mechanised gouging for weld preparation & unwanted material removal.

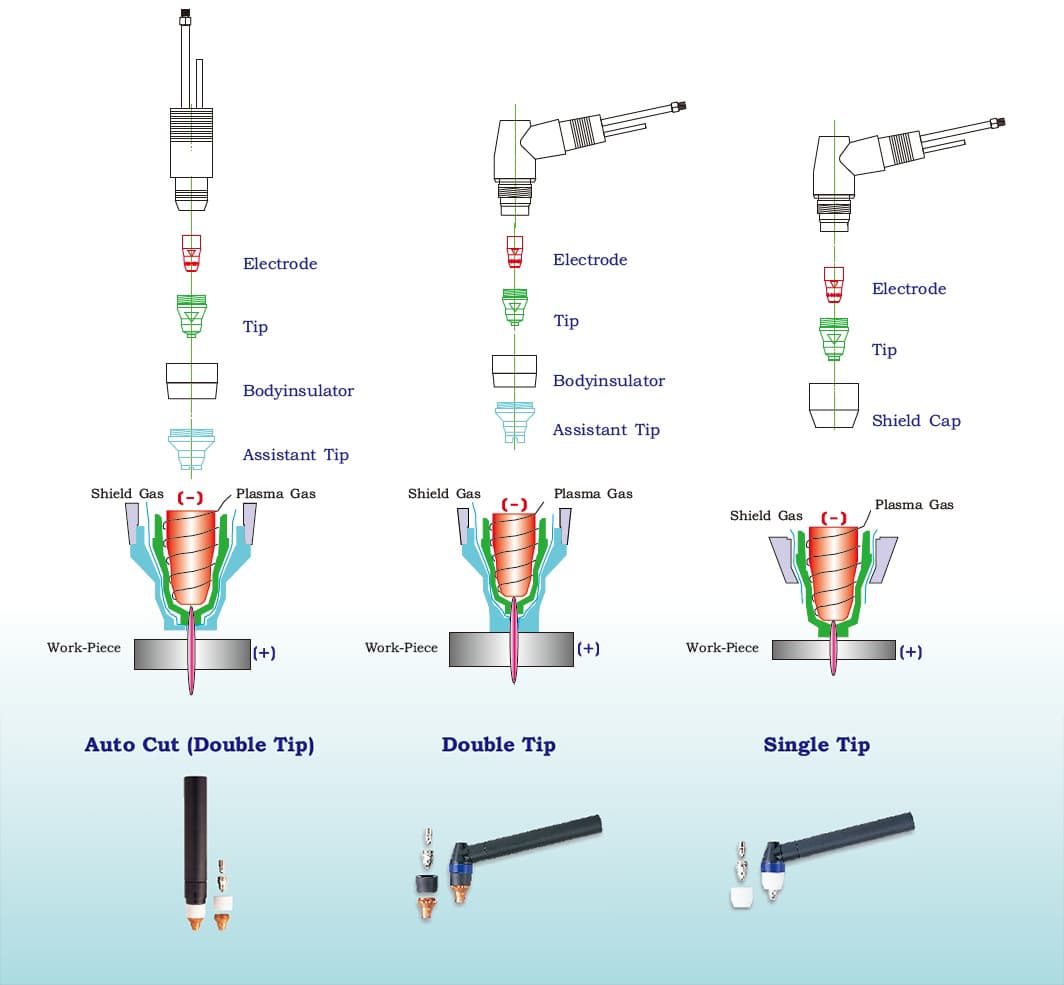

9. Dual tip and Single tip modes are available for selection:
   • Dual tip: provides faster cutting speed, better capacity, also assistance tip can protect spatter from workpiece to extend inner tip's life.
   • Single tip: less consumable combination, reduce the consumables cost.

Remark:

1. Duty cycle is value is based on the ambient temperature less than 40℃
2. Products are manufactured according to the latest technology; we reserve all right for the products improvement without further notice.
3. Different input voltage can be supplied on request.
