15KW Plasma Heating Machine

"Plasma" is the fourth state of matter, after solid, liquid, and gas, and it is constituted by ions, electrons, atoms, and molecules. The core temperature of the plasma flame can be as high as 10,000℃. Furthermore, the system can easily create an environment with a temperature over 2,000℃ (depending on the material of the chamber) as well as a large mass of UV rays.

Compared to the traditional burning methods, our system not only provides a higher temperature environment, but also offers the following advantages:

1. Through the high heat conductivity, Plasma is 10 times faster to achieve such high temperatures.
2. Depending on the chemical characteristics, using different gases would bring different temperatures and effects to the result.
3. Less energy is lost during the process, which can maximize the usage of energy.
4. A safer and easier control by using electrical power.
5. The system can directly disintegrate matter in an oxygen-starved environment.
6. The flame contains a lot of UV rays, which can speed up the chemical reactions.

1. Constant current controlled DC output.
2. The heating source is controlled by temperature feedback and an electronic circuit system, which keeps the temperature in the chamber constant.
3. Reliable operation for 24 hours and maximum for more than one month constantly.
4. Using the technology of switching power for the most constant output current. ( With a ripple rate ≦ 10%, and a power factor ≧ 90%.
5. IGBT Chopper structured, with the most stable output current.
6. Operated with a touch screen HMI.

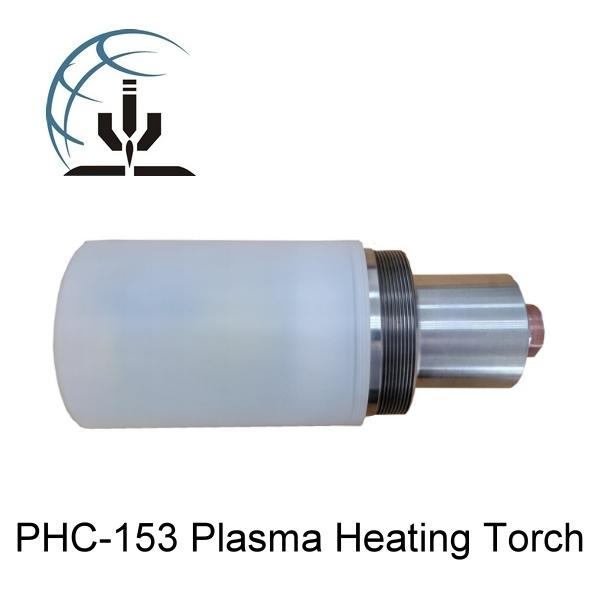

1. Available in the types of "Transferred" or "Non-Transferred."
2. Special alloy-made body.
3. Designable diameter and length of the flame. (Diameter from 10 to 100mm and length from 50 to 1,000mm)
4. Suitable gas: Air, Argon, Nitrogen, Oxygen, and Mixed Gas (like Ar+H2, N2+H2, O2+N2, or Ar+N2), etc.

1. Available in the types of "Transferred" or "Non-Transferred."
2. Special alloy-made body.
3. Designable diameter and length for the flame. (Diameter from 5 to 20mm, and length from 30 to 200mm)
4. Use high heat-resistant material as a cathode to reduce the consumption of the electrode and keep the heating subject clean.
5. Suitable gas: Argon, Nitrogen, and Mixed Gas  (Ar+H2, N2+H2, O2+N2, or Ar+N2), etc.

Remark:

1. Customized specifications can be made upon request.
2.  Our products are manufactured according to the latest technology.
   We reserve all the rights for product improvement.
3.  Photo(s) are for reference only.
